Biber 92 Eschlböck Eschlböck 92

Eschlböck - Biber 92 Eschlböck

NomeBiber 92 Eschlböck
Codice92
TipologiaEschlböck

Dettagli

Modelli Disponibili: Biber 92 ZK - Biber 92 RBZ - Biber 92 RBM - Biber 92 ZK top

Ulteriori Informazioni

Technical data	92 ZK / ZK top	92 RBZ	92 S	92 RBM ¹⁾
Maximum wood diameter	75 cm	75 cm	75 cm	75 cm
Max. woodØ with blade system (hard wood)	60 cm	60 cm	60 cm	60 cm
In-feed width	122 cm	122 cm	122 cm	122 cm
No. of knives or blade system	10 or 20	10 or 20	10 or 20	10 or 20
Chain belt in-feed length to roller	2.05 m	2.05 m	3.1 m	1.7 / 2.4 / 3.1 m
Power required via PTO shaft	from 150 kW (204 HP)	-	-	-
Rotational speed of PTO shaft	1000 rpm	-	-	-
Power requirement from engine	-	HGV 397 kW (539 HP)	from 382 kW (519 HP)	from 382 kW (519 HP)
Hydraulic swinging drawbar	-	-	●	-
Turntable	-	-	-	●
Loading crane	●	●	-	●
Spaltbiber	○	○	○	○
Transport dimensions l x w x h (m) *	ZK 5.9 x 2.5 x 3.9 ZK top 7.2 x 2.5 x 3.9	8.3 x 2.5 x 4.0	9.9 x 2.5 x 3.7	²⁾ x 2.5 x 4.0
Weight ca. (kg) *	17,000 / 18,500	26,000	20,000	²⁾

* Depending on the fittings ● Standard model ○ Optional extra available at extra cost

1) Model variants: Z: Drive for power take-off shaft / ZK: Power take-off shaft and crane / Top: with conveyor belt /

RBZ: Truck engine drive / S: with motor on trailer with swinging drawbar / All-in-one device RBM or RM variant: wood chipper mounted on a frame to be installed on top of the customer’s vehicle

2) depending on the variant chosen

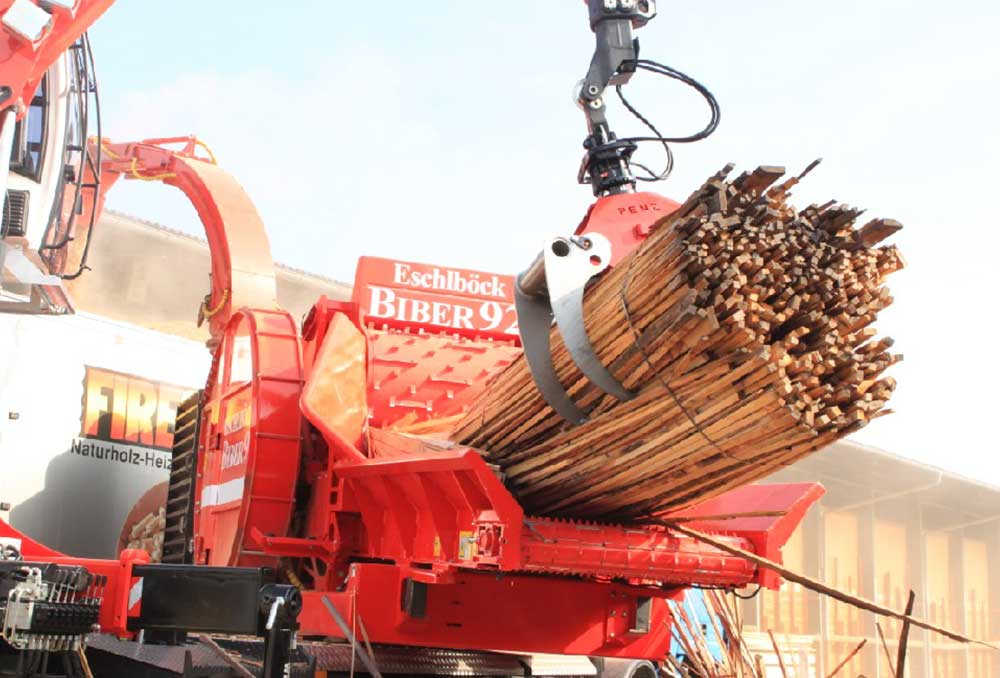

High performance wood chippers!

The Biber 92 model is characterised by its convincing efficiency and perfect performance. It is ideal for processing timber of up to 75 cm in diameter. Its feeder with a width of 122 cm can handle even unwieldy material and efficiently process it.

The chipping roller, exceeding 1m in diameter, with its 10 respectively 20 chipping knives or optional blades, along with its large screen, produces as well precise fine as coarse chips for industrial furnaces.

The new multi-purpose chipping rotor consists of high-strength and low-wear materials and is distinguished by intelligent patented screw links. It is especially persistent, easy in maintenance and service reduced.

Biber 92 ZK
Ideal for operating in fields and meadows is the compact ZK variant, drawing its energy from a PTO shaft. This device is only 2.55 m wide, even when equipped with class 600 tires.

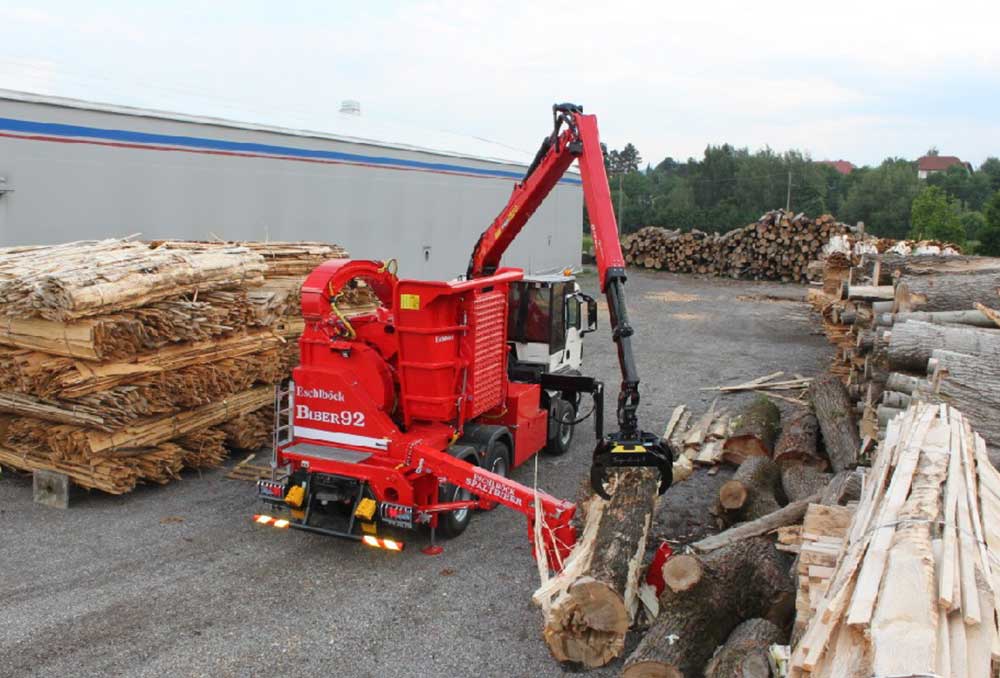

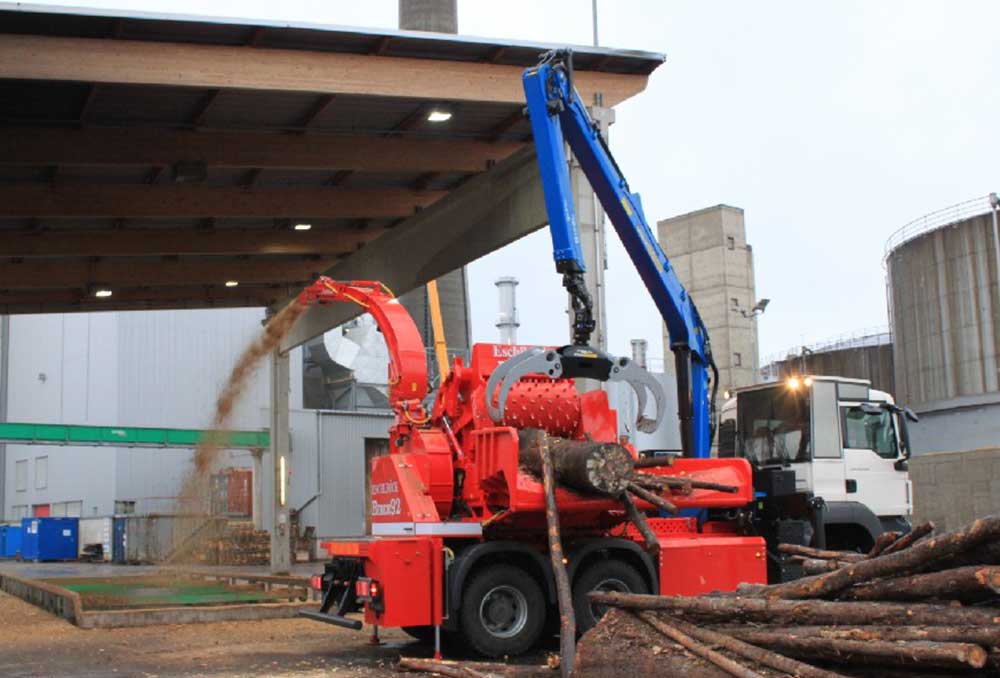

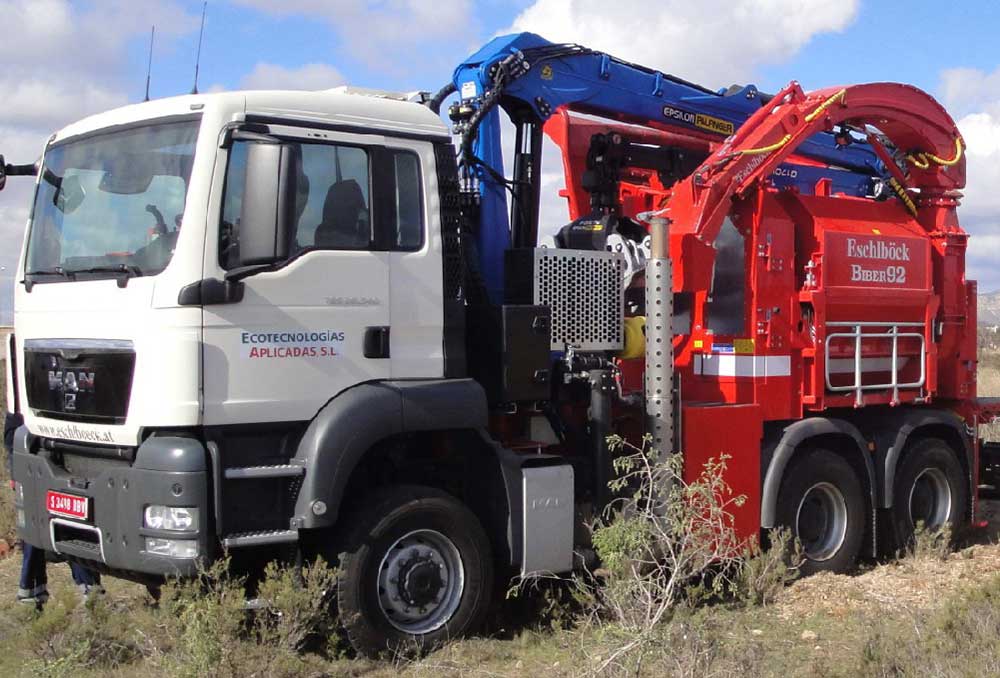

Biber 92 RBZ
Its compact size with a width of only 2.55 m, its high mobility and the convenient driving and operation (the truck cabin intelligently turns into the operator’s stand for woodchipping) distinguish the Biber 92 RBZ model as the currently unchallenged woodchipping device. Its six-wheel-drive with its twisted axles leaves you every option for operating this woodchipping device wherever mobility and cross-country abilities are required. In addition, its maximum speed of 80 km/h is hardly superceded by any device currently available on the market.

Biber 92 RBM
Its broad feeder and its conveyor belt up to 3.1 m in length allow processing of even long trunks. The device is turnable to a degree of 90° to the left or right, so timber stored at both sides of forestry roads can be processed. The chipping rotor (more than 1m in diameter) is driven by a 650 hp Ad Blue Scania engine. New blowers with a diameter of more than 2m allow gentle spouting of wood chips and lead to a high capacity of the device.

Biber 92 ZK top
The ‚top’ model does completely without augers and blowers. The conveyor belt is positioned directly below the screen! The effect is a higher capacity and production of wood chips in an even higher quality.
